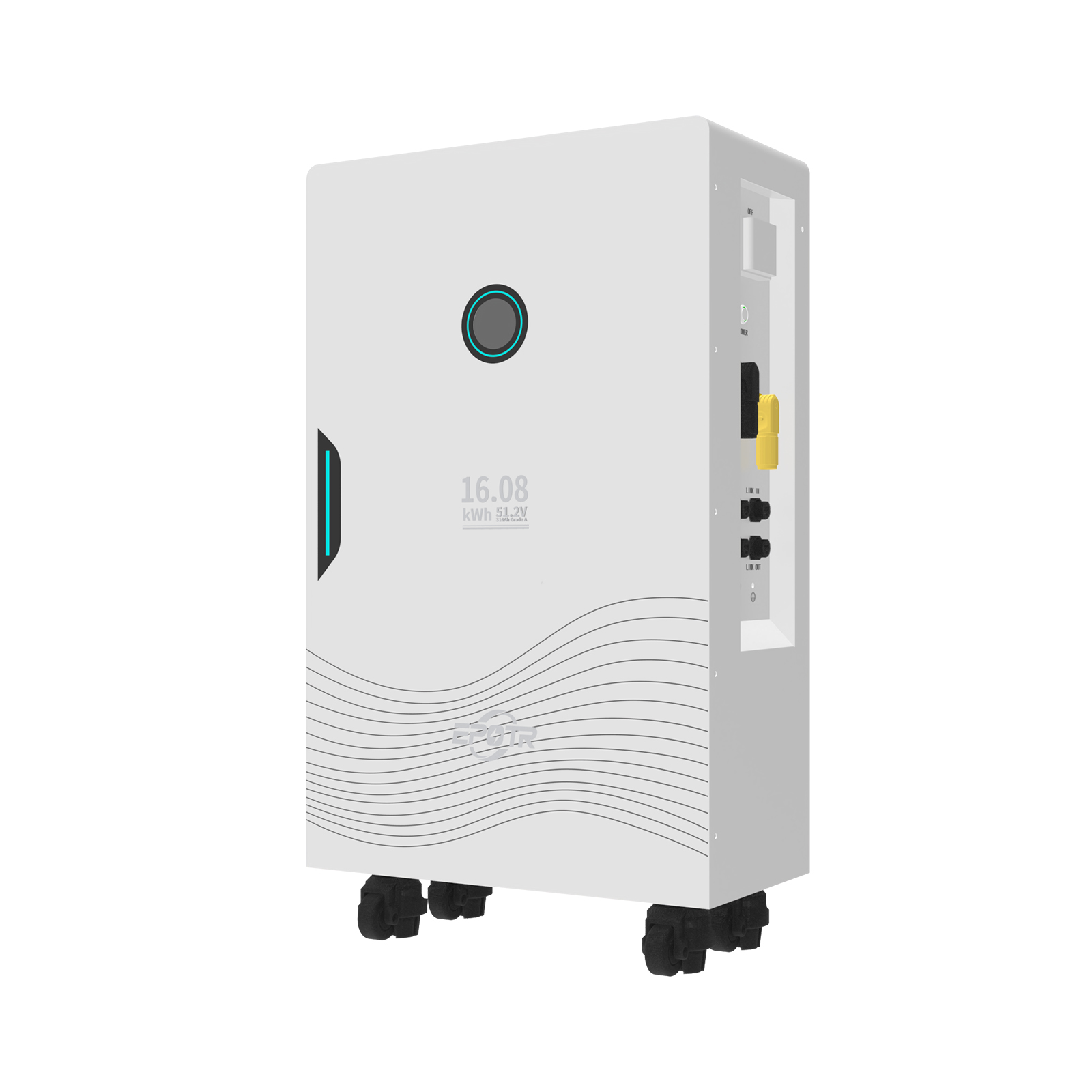

| Model | EP-FS016KP |
| Performance | |
| Nominal Voltage | 51.2Vdc |
| Nominal Capacity | 314Ah |
| Battery Energy | 16.08kWh |
| Charge Voltage | 55.68~56.16 Vdc |
| Discharge Voltage | 45.6~56.16 Vdc |
| Maximum Charge Current | 150 A |
| Maximum Discharge Current | 200 A |
| Short Circuit Current | 540 A |
| Communication | |
| Display | Round Color Touch screen + LED indicator |
| Communication | RS485、CAN |
| General Specification | |
| Dimension (WXDXH mm) | 870x500x245 mm |
| Weight (Kg) | 120 kg |
| Working Temperature | Charge 0°C~45°C , Discharge-20°C~45°C |
| Storage Temperature | Short Term(within 1 month) -10°C~45°C |
| LongTerm(within 1 year)0°C~35°C | |
| Storage Humidity | ≤ 95%RH |
| Max Operating Altitude | ≤2000m |
| IP Rating | IP65 |
| Cell Type | LiFePO4, Lithium Iron Phosphate |
| Warranty | 5-Year Standard / 10-Year Premium Optional |
| Cycle life | 8000 Cycles @ 90% DOD/25°C/0.5C, 60% EOL |
| Scalability | Max 63 batteries in parallel |
