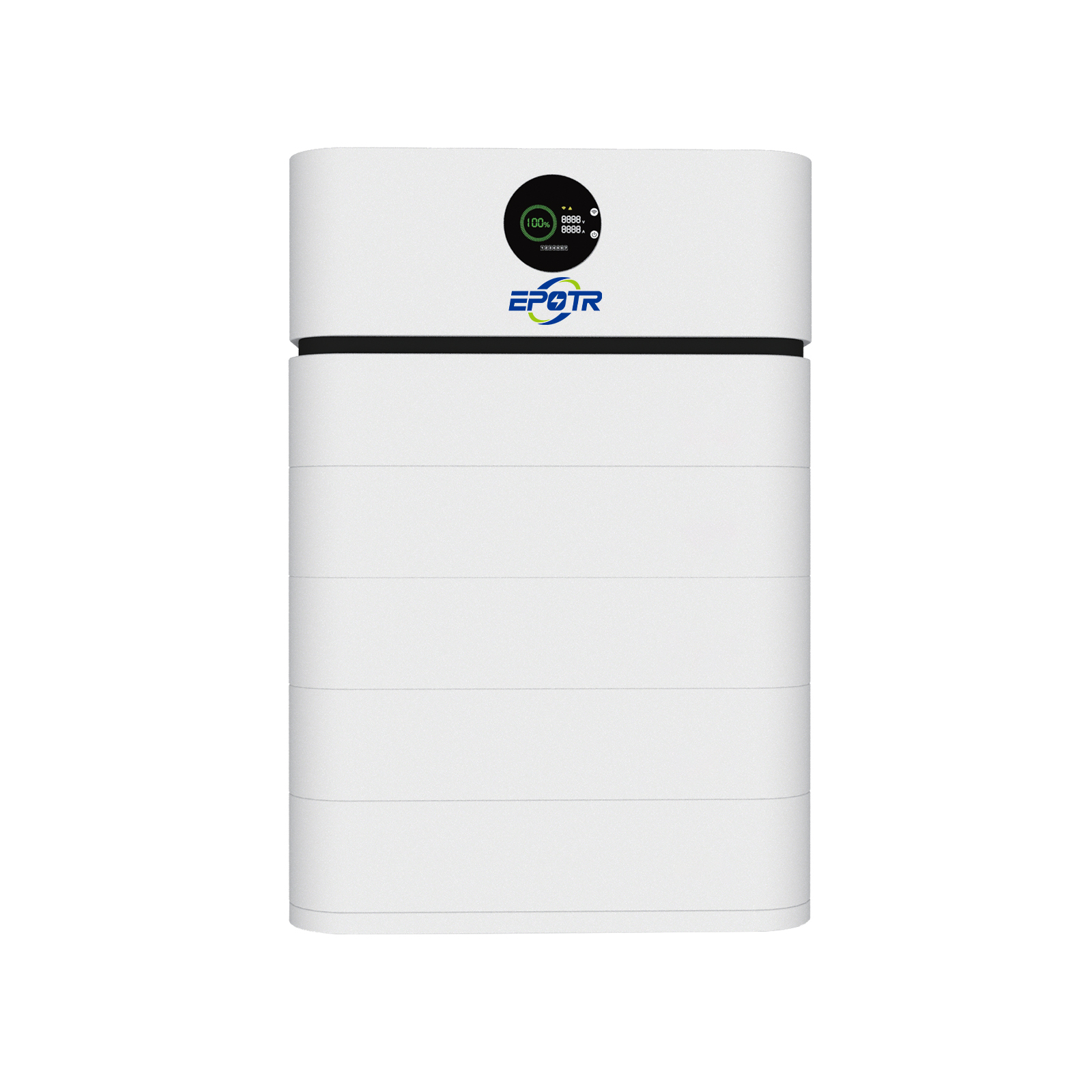

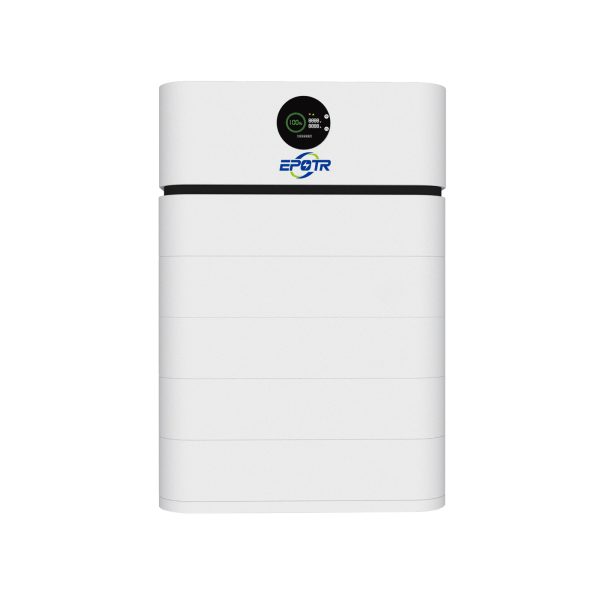

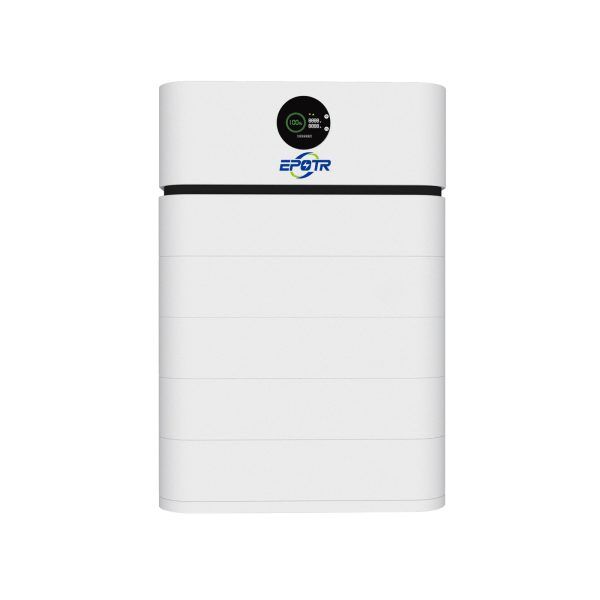

PowerCool-LFP-LV supports 5.22kWh to 36.56kWh capacities through scalable stack-mount design. With 95% DOD, IP55 rating, and a 10-year warranty acceptably, it’s ideal for residential users seeking reliable, space-saving, and cost-effective energy storage for self-consumption, time-of-use, or grid backup scenarios.
| model | Power Cool LFP LV | ||||||
| Battery type | LFP | ||||||
| Number of connection | 1pcs | 2pcs | 3pcs | 4pcs | 5pcs | 6pcs | 7pcs |
| Total energy | 5.22kWh | 10.44kWh | 15.67kWh | 20.89kWh | 26.11kWh | 31.33kWh | 36.56kWh |
| Usable energy | 4.96kWh | 9.92kWh | 14.88kWh | 19.85kWh | 24.81kWh | 29.77kWh | 34.73kWh |
| Max.parallel connection number | 160A | ||||||
| Voltage | 3P | ||||||
| Max.charging voltage | 51.2V | ||||||
| Nominal charging current | 57.6V | ||||||
| Discharging cut-off voltage | 44.8V | ||||||
| Battery efficiency | 95% | ||||||
| Max.recommended DOD | 95% | ||||||
| Communication | RS485/CAN | ||||||
| IP rating | IP55 | ||||||
| Operating temperature | -10～50℃ | ||||||
| Altitude | ≤5,000m | ||||||
| Humidity | 5%～95% | ||||||
| Warranty | 5 Year Product Warranty,10 Year Performance Warranty | ||||||
| Dimension | 720*420*458mm 720*420*608mm 720*420*758mm 720*420*908mm 720*420*1058mm720*420*1208mm720*420*1358mm | ||||||
| Net weight | 63kg | 113kg | 163kg | 213kg | 263kg | 313kg | 363kg |
| Certificates | CE,IEC62619,IEC61000,IEC62040,IEC63056,UN38.3,MSDS | ||||||
| model | Power Cool LFP LV | |||||
| Battery type | LFP | |||||
| Number of connection | 2pcs | 3pcs | 4pcs | 5pcs | 6pcs | 7pcs |
| Total energy | 10.44kWh | 15.67kWh | 20.89kWh | 26.11kWh | 31.33kWh | 36.56kWh |
| Usable energy | 9.92kWh | 14.88kWh | 19.85kWh | 24.81kWh | 29.77kWh | 34.73kWh |
| Max.parallel strings | 3P | |||||
| Voltage | 102.4V | 153.6V | 204.8V | 256V | 307.2V | 358.4V |
| Nominal charging voltage | 115.2V | 172.8V | 230.4V | 288V | 345.6V | 403.2V |
| Max.charging/discharging current | 50A | |||||
| Discharge cut-off voltage | 89.6V | 134.4V | 179.2V | 224V | 268.8V | 313.6V |
| Battery efficiency | 95% | |||||
| Maximum recommended DOD | 95% | |||||
| Communication | RS485/CAN | |||||
| IP rating | IP55 | |||||
| Operating temperature | -10～50℃ | |||||
| Altitude | ≤5,000m | |||||
| Humidity | 5%～95% | |||||
| Warranty | 5 Year Product Warranty,10 Year Performance Warranty | |||||
| Dimension | 720*420*608mm | 720*420*758mm | 720*420*908mm | 720*420*1058mm 720*420*1208mm 720*420*1358mm | ||
| Net weight | 113kg | 163kg | 213kg | 263kg | 313kg | 363kg |
| Certificates | CE,IEC62619,IEC61000,IEC62040,IEC63056,UN38.3,MSDS | |||||
