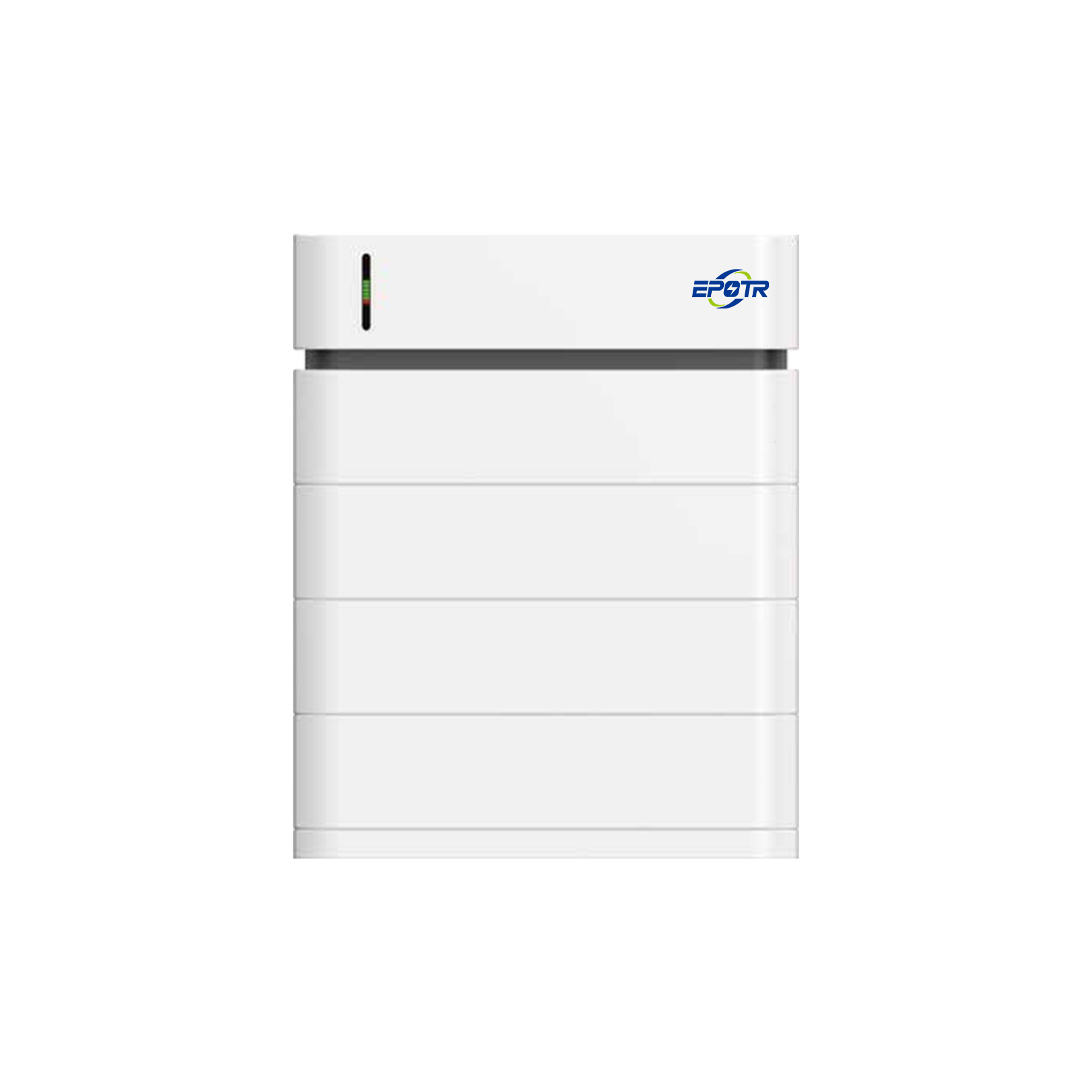

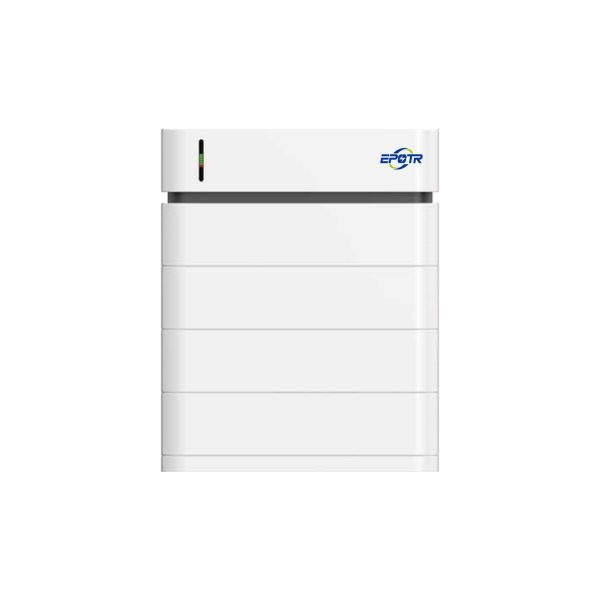

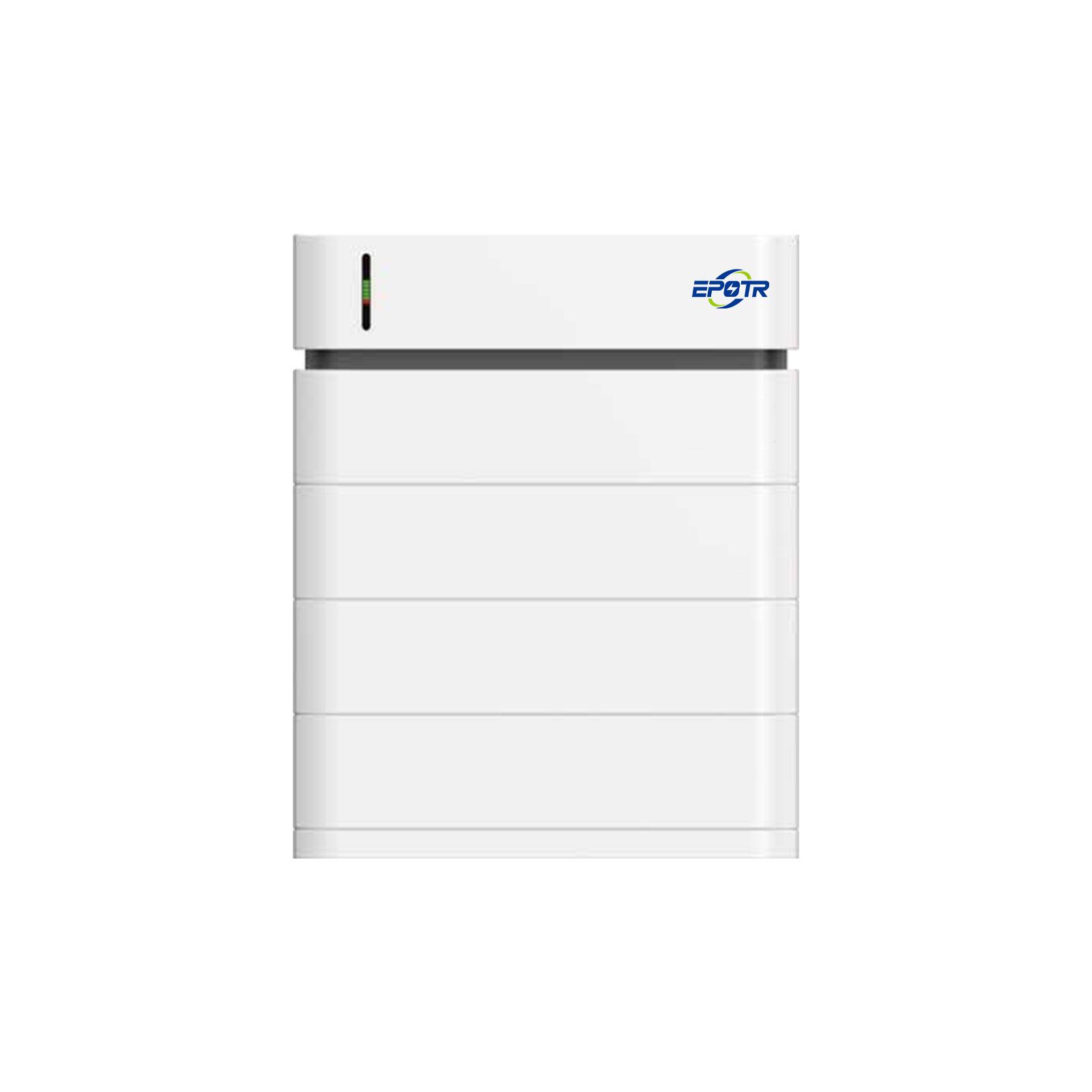

| Model | PowerCool-LFP-HV2 | |||||
| Battery type LFP | ||||||
| Number of connection | 2pcs | 3pcs | 4pcs | 5pcs | 6pcs | 7pcs |
| Total energy | 10.44kWh | 15.67kWh | 20.89kWh | 26.11kWh | 31.33kWh | 36.56kWh |
| Usable energy | 9.92kWh | 14.88kWh | 19.85kWh | 24.81kWh | 29.77kWh | 34.73kWh |
| Max.parallel strings | 8P | |||||
| Voltage | 102.4V | 153.6V | 204.8V | 256V | 307.2V | 358.4V |
| Nominal charging voltage | 115.2V | 172.8V | 230.4V | 288V | 345.6V | 403.2V |
| Max.charging current | 50A | |||||
| Nominal discharging voltage | 50A | |||||
| Discharge cut-off voltage | 89.6V | 134.4V | 179.2V | 224V | 268.8V | 313.6V |
| Battery efficiency | 95% | |||||
| Battery Protection | Over-current/Over-voltage/Short-circuit/Under-voltage/Over temperature | |||||
| Maximum recommended DOD | 95% | |||||
| Communication RS485/CAN | ||||||
| IP rating | IP65 | |||||
| Operating temperature | -10～50℃ | |||||
| Altitude | ≤5,000m | |||||
| Humidity | 5%～95% | |||||
| Warranty | 10yeas | |||||
| Dimension | 660*390*515mm | 660*390*665mm | 660*390*815mm | 660*390*965mm 660*390*1115mm 660*390*1265mm | ||
| Net weight | 110kg | 156kg | 202kg | 248kg | 294kg | 340kg |
| Certificates | CE,IEC62619,IEC61000,IEC62040,IEC63056,UN38.3,MSDS | |||||
| Installation | Ground Installation | |||||
