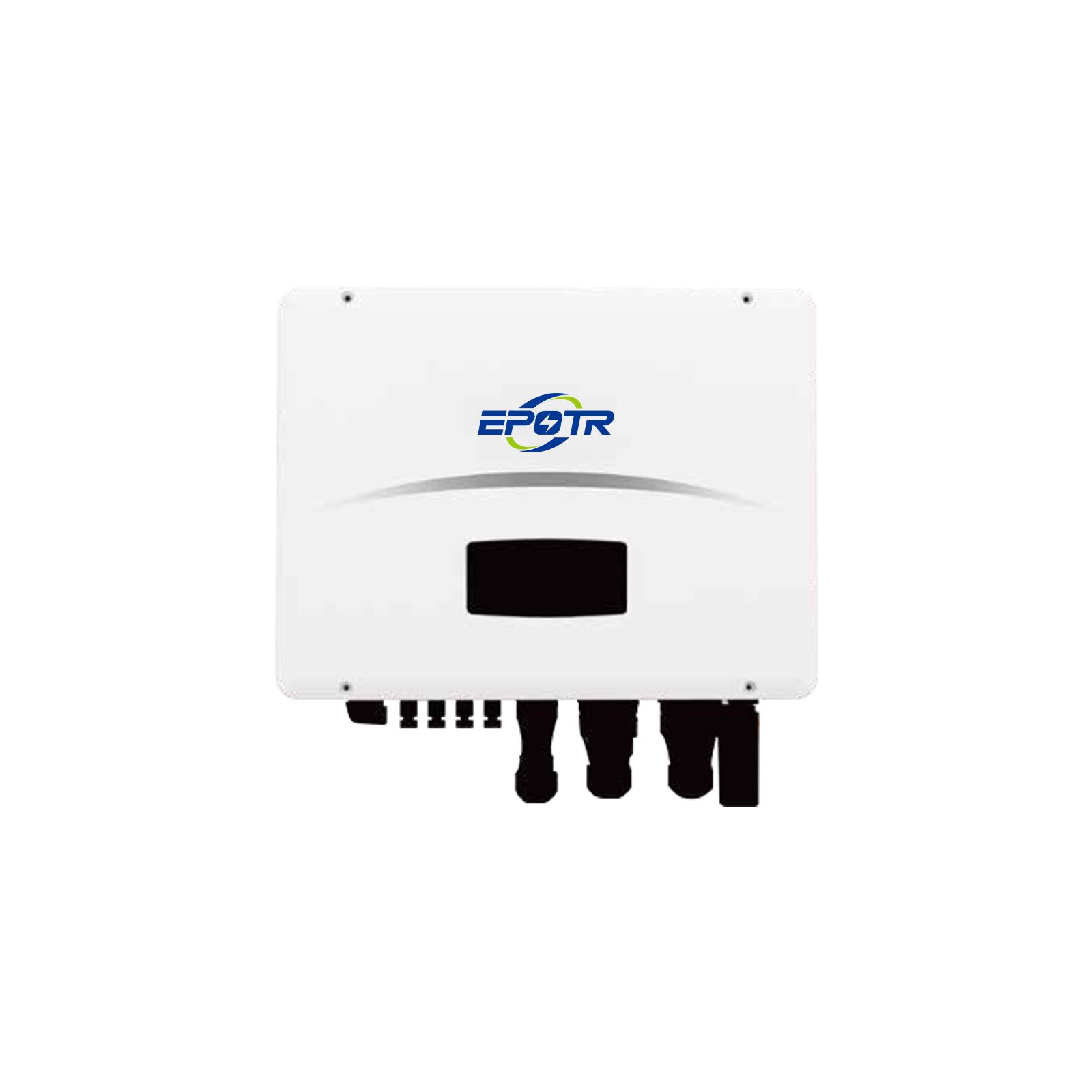

Technical specification

Technical Specifications
PV Input Ares 8KHP3 Ares 10KH3 Ares 12KH3 Ares 15KH3
Max.DClnput Power 12kW 15kW 18kW 22.5kW
Max.PV Voltage 1000V
Rated DC Input Voltage 620V
DCInput Voltage Range 150-1000V
MPPT Voltage Range 150-850V
Full MPPT Range 300-850V 500-850V 500-850V 500-850V
Start-up Voltage 160V
Max.DC Input Current 20×2A 20+32
Max.Short Current 30x2A 30+48
Max.DC Input Current 2/2 2/3
Max.DC Input Current 20×2A 20+32
Battery Port
Battery Nominal Voltage 200V 400V 450V 500V
Battery Voltage Range 80-600V 150-800V 150-800V 150-800V
Max.Charge/Discharge Current 50A 30A 30A 50A
Max.Charge/Discharge Power 8KW 10KW 12KW 15KW
Charging Curve 3 Stages
Compatible Battery Type Li-ion battery
AC Grid
Nominal AC Output Power 8kW 10kW 12kW 15kW
Max.ACInput/Output Power 12/8.8kVA 15/11kVA 18/13.2kVA 22.5/16.5kVA
Max.AC Output Current 13.5A 17A 21.5A 27A
Nominal AC Voltage 230/400V
Nominal AC Frenquency 50/60Hz
Power Factor 1(-0.8-0.8)
Current THD <3%
AC Load Output(Back-up)
Nominal Output Power 8000VA 10000VA 12000VA 15000VA
Nominal Output Voltage 230/400V
Nominal Output Frequency 50/60Hz
Nominal Output Current 11.6 A 14.5A 17.4A 21.8A
Peak Output Power 8800VA,60s 11000VA,60s 13200VA,60s 16500VA,60s
THDV(with linear load) <3%
Switching Time <10ms
Efficiency
Europe Efficiency 97.50%
Max.Efficiency 98.20% 98.20% 98.30% 98.30%
Battery Charge/Discharge Efficiency 98.00%
Protection
Reverse Polarity Protection Yes
Over Current/Voltage Protection Yes
Anti-islanding Protection Yes
AC Short-ciruit Protection Yes
Leakage Current Detection Yes
Ground Fault Monitoring Yes
Grid Monitoring Yes
Enclosure Protect Level IP65
General Data
Dimensions 558×535×260 mm 370×497×192 mm 370×497×192 mm 558×535×260 mm
Weight 29kg 20.8kg 20.8kg 29kg
Topology Transformerless
Cooling Concept IntelligentFan
Relatively Humidity 0-100%
Operating Temperature Range -25 to 60℃
Operating Altitude <4000m
Noise Emission <30dB
Standby Consumption <5W
Display &Communication Interfaces LCD,LED,RS485,CAN,Wi-Fi,GPRS,4G
Certification &Approvals NRS097,G98/G99,EN50549-1,C10/C11,AS4777.2,VDE-AR-N4105,VDE0126,IEC62109-1,IEC62109-2
EMC EN61000-6-2,EN61000-6-3
