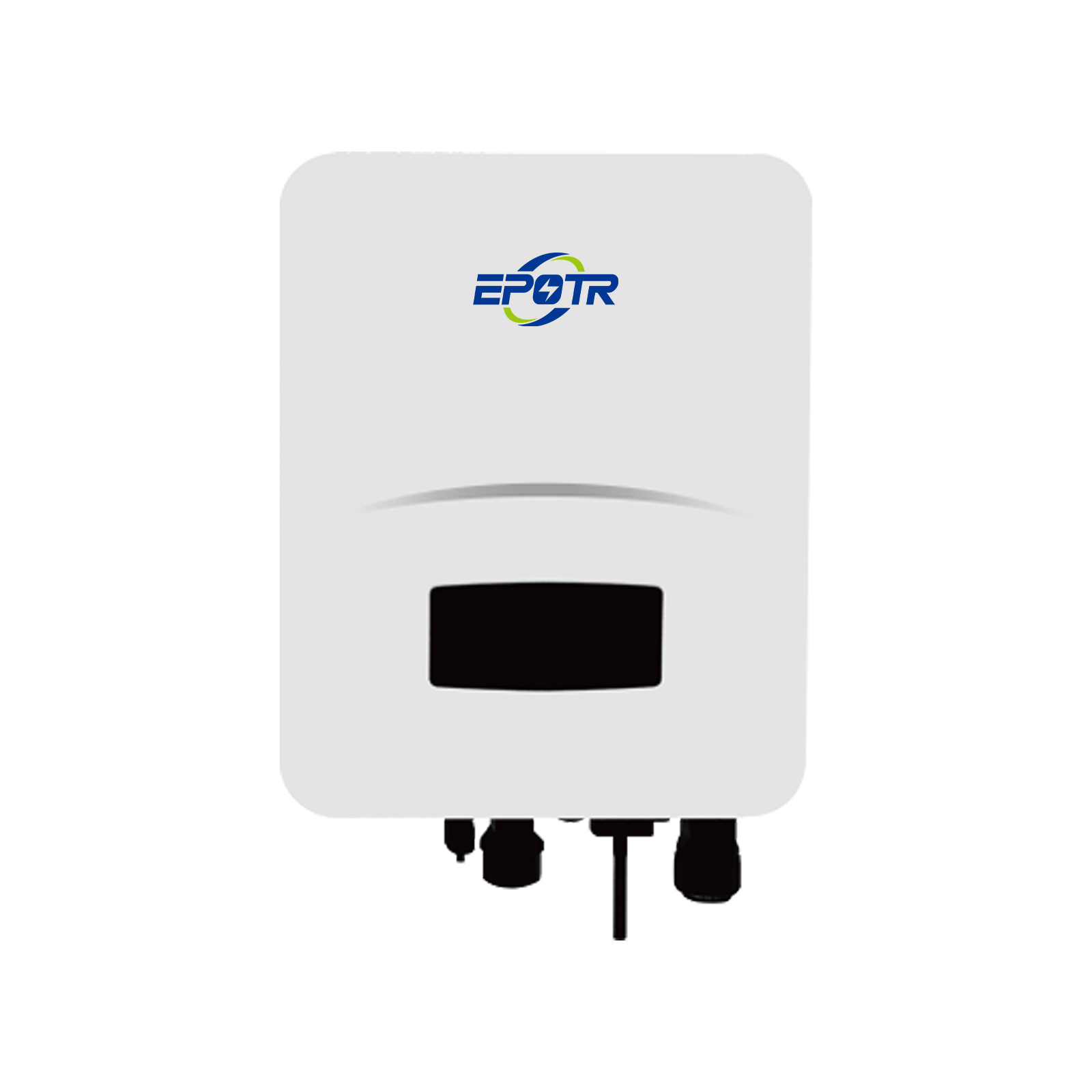

Single-Phase HV Hybrid Inverter
Reliable and efficient, our Single-Phase HV Hybrid Inverter is designed for residential applications. It supports high-voltage battery systems, seamless grid interaction, and smart energy management for optimal self-consumption and backup power.
| PVInput | Ares 3.6KL | Ares 5KL | Ares 6KL |
| Max.Input Power | 5.4kW | 7.5kW | 9.0kW |
| Max.PV Voltage | 550V | ||
| MPPT Range | 80-500V | ||
| Full MPPTRange | 110-50DV | 150-500V | 170-500V |
| Normal Voltage | 360V | ||
| Startup Voltage | 100V | ||
| Max.Input Current | 18.5×2A | ||
| Max.Short Current | 26×2A | ||
| Noof MPPTracker/No.of PVString | 2/2 | ||
| Battery Port | |||
| Max.Charge/Discharge Power | 3.6kw | 48kw | 48kw |
| Max.Charge/Discharge Current | 8DA | ||
| Battery NormalVoltage | 51.2V | ||
| Battery Voltage Range | 40-60V | ||
| Battery Type | Li-ion/Lead-acid etc. | ||
| AC Grid | |||
| Max Continuous Current | 17.0A | 23.0A | 28.0A |
| Max Continuous Power | 3.6kVA | 5.0kVA 6.0KVA | 6.0KVA |
| Nominal Grid Current | 16.4/15.7A | 22.8/21.8A | 27.3/26.1A |
| Nominal Grid Voltage | 198 to 242@220/207 to 253@230V | ||
| Nominal Grid Frequency | 50/60Hz | ||
| Power Factor | 0.999(Adjustable from 0.8 overexcited to 0.8 underexcited) | ||
| Current THD | <3% | ||
| AC Load Output | |||
| Max Continuous Current | 17.0A | 23.0A | 28.0A |
| Max Continuous Power | 3.6kVA | 5.0KVA | 6.0KVA |
| Max Peak Current(10min) | 24.6/23.5A | 34.1/32.7A | 41.0/39.2A |
| Max PeakPower(10min) | 5.4KVA | 7.5kVA | 9.0KVA |
| Nominal AC Current | 16.4/15.7A | 22.8/21.8A | 27.3/26.1A |
| Nominal AC VoltageL-N | 220/230V | ||
| NominalACFrequency | 50/60Hz | ||
| Switching Time | Seamless | ||
| Voltage THD | <3% | ||
| Efficiency | |||
| CEC Efficiency | 97.0% | ||
| Max.Efficiency | 97.6% | ||
| PV to Bat.Efficiency | 98.1% | ||
| Bat.between AC Efficiency | 96.8% | ||
| Protection | |||
| PV Reverse Polarity Protection | Yes | ||
| Over Current/Voltage Protection | Yes | ||
| Anti-Lslanding Protection | Yes | ||
| AC Short Circuit Protection | Yes | ||
| Residual Current Detection | Yes | ||
| Ground Fault Monitoring | Yes | ||
| Insulation Resister Detection | Yes | ||
| PV Arc Detection | Yes | ||
| Enclosure Protect Level | IP65/NEMA4X | ||
| General Data | |||
| Dimensions | 370×535×192mm | ||
| Weight | 18.5kg | 20.5kg | |
| Topology | Transfomerless | ||
| Cooling | Intelligent Fan | ||
| Relatively Humidity | 0-100% | ||
| Operating Temperature Range | -25to 60℃ | ||
| Operating Alitude | c4000m | ||
| Noise Emission | <25dB | ||
| Standby Consumption | <10W | ||
| Mounting | Wall Bracket | ||
| Communication with RSD | SUNSPEC | ||
| Display &Communication Interfaces | LCD,LED,R54B5,CAN,Wi-Fi,GPRS,4G | ||
| Certification&Approvals | NR5097,G98/G99,EN50549-1,C10/C11,A54777.2,VDE-AR-N4105,VDE0126,IEC62109-1,IEC62109-2 | ||
| EMC | EN61000-6-2,EN61000-6-3 | ||
