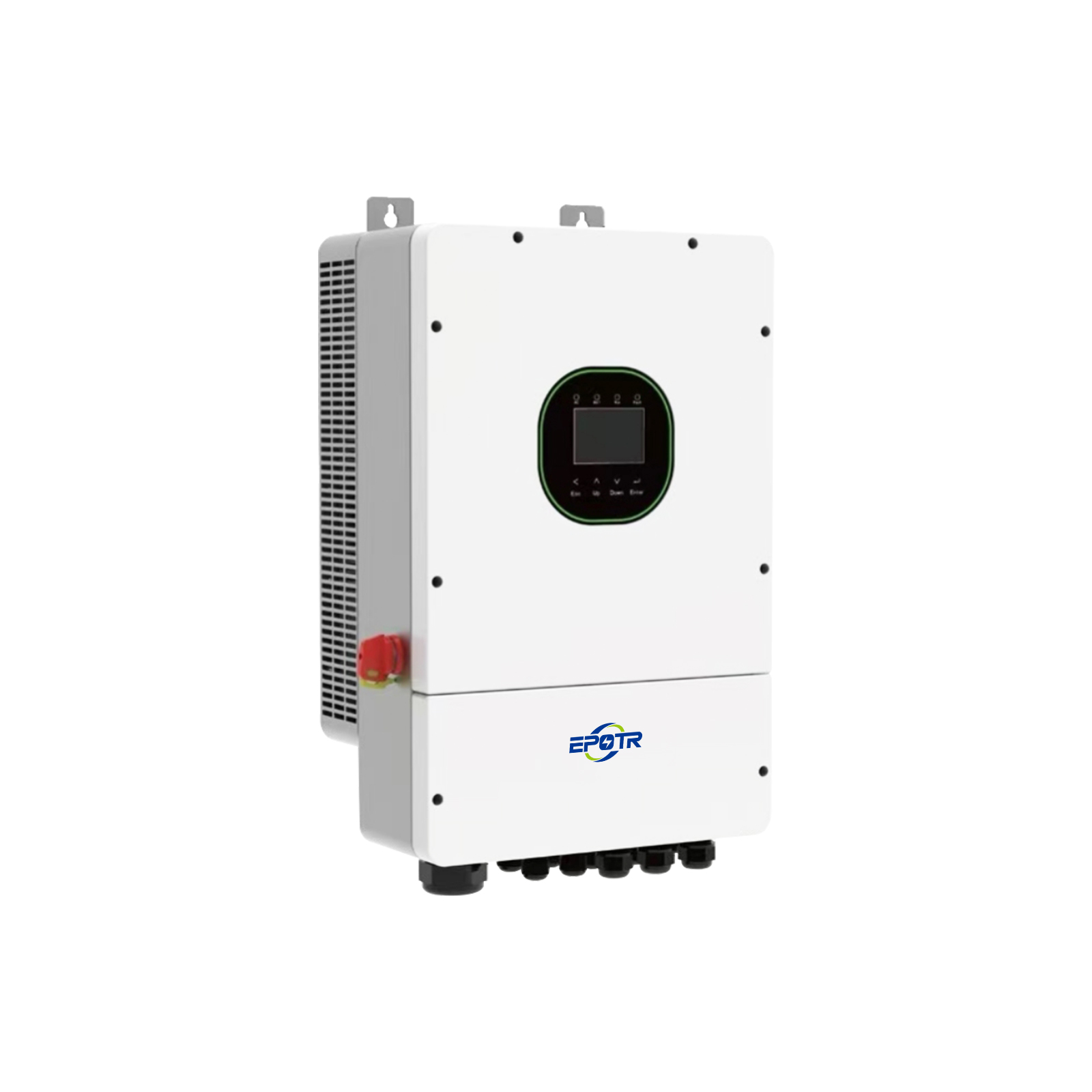

H2 Series supports 5–12kW single-phase systems with two MPPTs and compatibility with LFP and Lead-Acid batteries. Designed for off-grid or diesel generator and small wind turbines integration, it’s ideal for entry-level markets seeking a cost-effective, versatile, and easy-to-install hybrid inverter for residential solar applications.
| DC Input | ||||||
| Max.PV Array Power [Wp]@STC | 10000 | 12000 | 15200 | 16000 | 20000 | 24000 |
| Max.DC Voltage [V] | 500 | |||||
| MPPT Voltage Range [V] | 90～480 | |||||
| Rated DC Voltage [V] | 360 | |||||
| Start Voltage [V] | 80 | |||||
| Max.DCInput Current [A] | 20/20 | 40/40 | ||||
| Max.DC Short Circuit Current [A] | 25/25 | 50/50 | ||||
| No.of MPPT | 2 | |||||
| Battery Parameters | ||||||
| Battery Type | Lead-acid or LiFePO4 | |||||
| Battery Voltage Range [V] | 40～60 | |||||
| Max.Charging/Discharging Current [A] | 100 | 120 | 190 | 190 | 240 | 240 |
| AC Output [On-grid] | ||||||
| Rated AC Power [W] | 5000 | 6000 | 7600 | 8000 | 10000 12000 | |
| Max.Apparent Power [VA] | 5500 6600 | 8360 | 8800 | 10000 | 12000 | |
| Rated Output Current [A]@230Vac | 21.8 26 | 33 | 34.8 | 43.5 | 52.2 | |
| Max.Output Current [A] | 25 | 30 | 38 | 40 | 45.5 | 54.6 |
| Rated AC Voltage/Range [V] | L+N+PE,220,230,240/180～280 | |||||
| Rated Output Frequency/Range [Hz] | 50,60/45～55,55～65 | |||||
| Power Factor [cos φ] | 0.8 leading~0.8 lagging | |||||
| Total Harmonic Distortion [THDi] | <3% | |||||
| ACInput [On-grid] | ||||||
| Rated AC Voltage/Range [V] | L+N+PE,220,230,240/180～280 | |||||
| Rated Input Frequency [Hz] | 5,060 | |||||
| Max.Input Current [A]@230Vac | 50 | 60 | 76 | 80 | 91 | 100 |
| AC Output [Back-up] | ||||||
| Max.Output Power [VA] | 5000 | 6000 | 7600 | 8000 | 10000 | 12000 |
| Max.Output Current [A] | 25 | 30 | 38 | 40 | 45.5 | 54.6 |
| Peak Output Apparent Power [VA] | 6000,60s | 7200,60s | 9120,60s | 9600,60s | 12000,60s 13200,60s | |
| Rated AC Voltage/Range [V] | L+N+PE,220,230,240/180～280 | |||||
| Rated Output Frequency/Range [Hz] | 50,60/45～55,55～65 | |||||
| Output THDv(@Linear Load) | <3% | |||||
| Efficiency | ||||||
| Max.Efficiency | 97.6% | |||||
| Euro Efficiency | 97.0% | |||||
| Protection | ||||||
| Battery Input Reverse Polarity Protection | Integrated | |||||
| Over load Protection | Integrated | |||||
| AC Short Circuit Current Protection | Integrated | |||||
| DC Surge Protection | Integrated | |||||
| AC Surge Protection | Integrated | |||||
| Anti-islanding Protection | Integrated | |||||
| AFCI Protection | Optional | |||||
| RSD Protection | Optional | |||||
| Interface | ||||||
| PV Connection | Terminal Block | |||||
| AC Connection | Terminal Block | |||||
| Battery Connection | Terminal Block | |||||
| Display | LED+APP | |||||
| Communication | Wi-Fi/Ethernet/4G(Optional) | |||||
| General Parameters | ||||||
| Topology | Non-isolated | |||||
| Operating Temperature Range | -40℃to+60℃(50℃ to 60℃ with derating) | |||||
| Cooling Method | Intelligent Fan cooling | |||||
| Ambient Humidity | 0-100%Non-condensing | |||||
| Altitude | 4000m(>3000m Power Derating) | |||||
| Noise [dBA] | <50 | |||||
| Ingress Protection | IP65 | |||||
| Dimensions [H*W*D][mm] | 590*380*241 | |||||
| Weight [kg] | 29 | |||||
| Warranty [Year] | 5/10 | |||||
| Standard | EN 62109-1/2,EN 61000-6-1/2/3/4,IEC 62116,IEC 61727,IEC62183,PEA&MEA,NBR 16149,NBR 16150, PORTARIA N 140,515,NRS097 |
|||||
