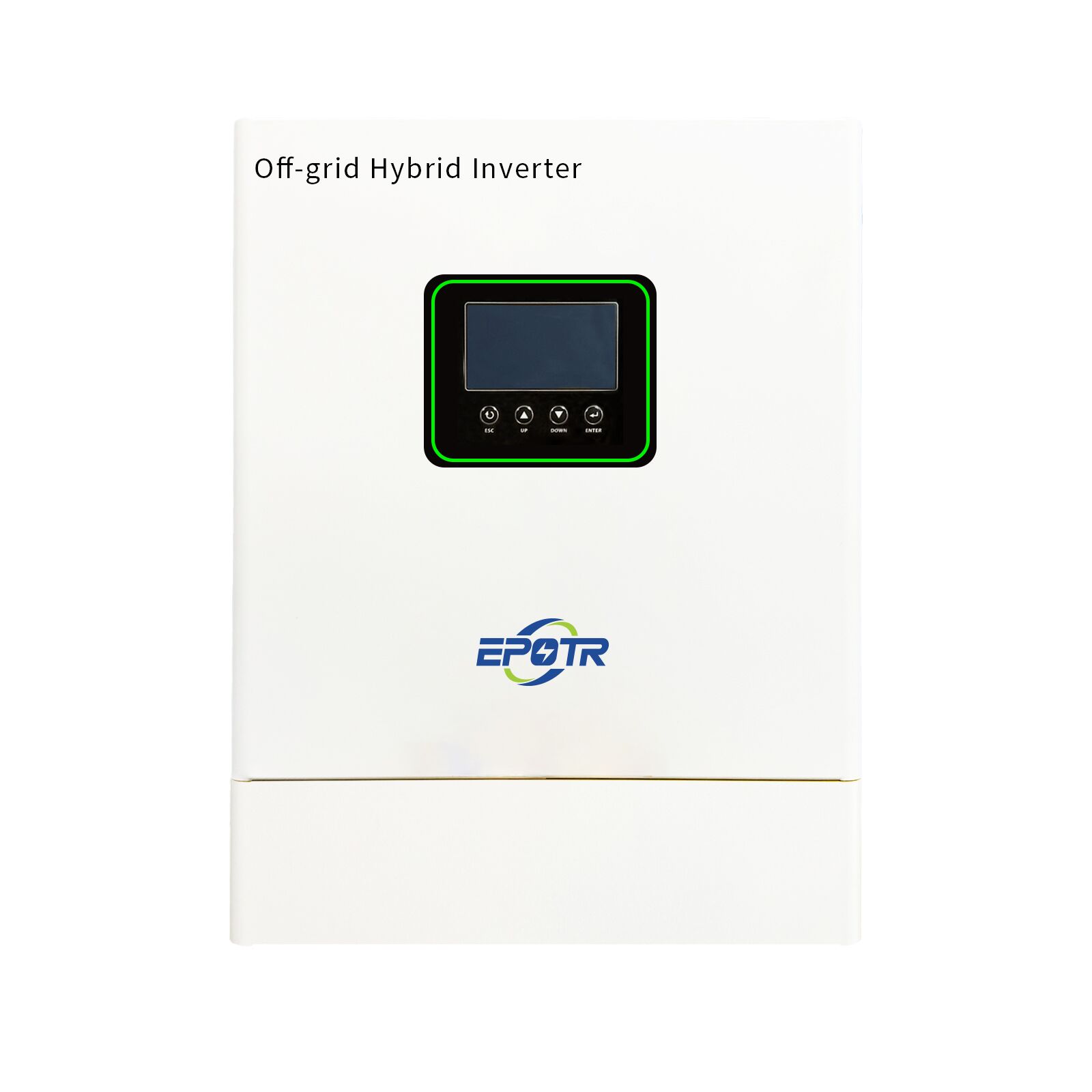

并机 M8.5 11kw并机中性(1)

EPH SERIES 8.5/11KW OFF GRID INVERTER

Technical specification

MODEL	EP-H8K5S-48L-NG			EP-H11KS-48L-NG
Capacity	8.5KVA/8.5KW			11KVA/11KW
Maximum PV Input Power	10KW			11KW
Parallel Capability	NO			NO
Lithium Battery Activation	YES(By PV or Utility)
Lithium Battery Communication	YES(RS485)
INPUT
Nominal Voltage	230VAC
Acceptable Voltage Range	170-280VAC(For personal Computer);90-280VAC(For Home Appliances)
Frequency	50/60 Hz(Auto sensing)
OUTPUT
Nominal Voltage	220/230/240VAC
Surge Power	17000VA			22000VA
Frequency	50/60 Hz
		Pure Sine wave
Dual Outputs		YES
		10ms(For personal Computer);20ms(For Home Appliances)
Peak Efficiency		94%
Overload Protection		5s@>=140%load;10s@110%~140%load
Admissible Power Factor		0.6~1(inductive or capacitive)
BATTERY
Battery Voltage		48Vdc	48Vdc
Maximum Discharge Current		180A	220A
Floating Charge Voltage		54Vdc	54Vdc
OverCharge Protection		63Vdc	63Vdc
Charging Method			CC/CV
SOLAR CHARGER &AC CHARGER
Solar Charger TYPE		MPPT	MPPT
Max.PV Array Power		5000W*2	5000W*2
Max.PV Array Open Circuit Voltage		500Vdc	500Vdc
PV Array MPPT Voltage Range		60Vdc~500Vdc	60Vdc~500Vdc
Max.Solar Input Current		18A*2	18A*2
Max.Solar Charge Current		140A	160A
Max.AC Charge Current		120A	120A
Max.Charge Current		140A	160A
PHYSICAL
Dimensions,DxWxH(mm)	540x403x122
Package Dimensions,D×W×H(mm)	637x495x214			637×495×214
Net Weight(Kgs)	14.5			14.8
Communication Interface	RS232/RS485/DRY CONTACT
LCD	Colorful Screen+RGB Light
ENVIRONMENT
Operating Temperature Range	-10℃ to 55℃
Storage temperature	-15℃~60℃
Humidity	5%to 95%Relative Humidity(Non-condensing)
