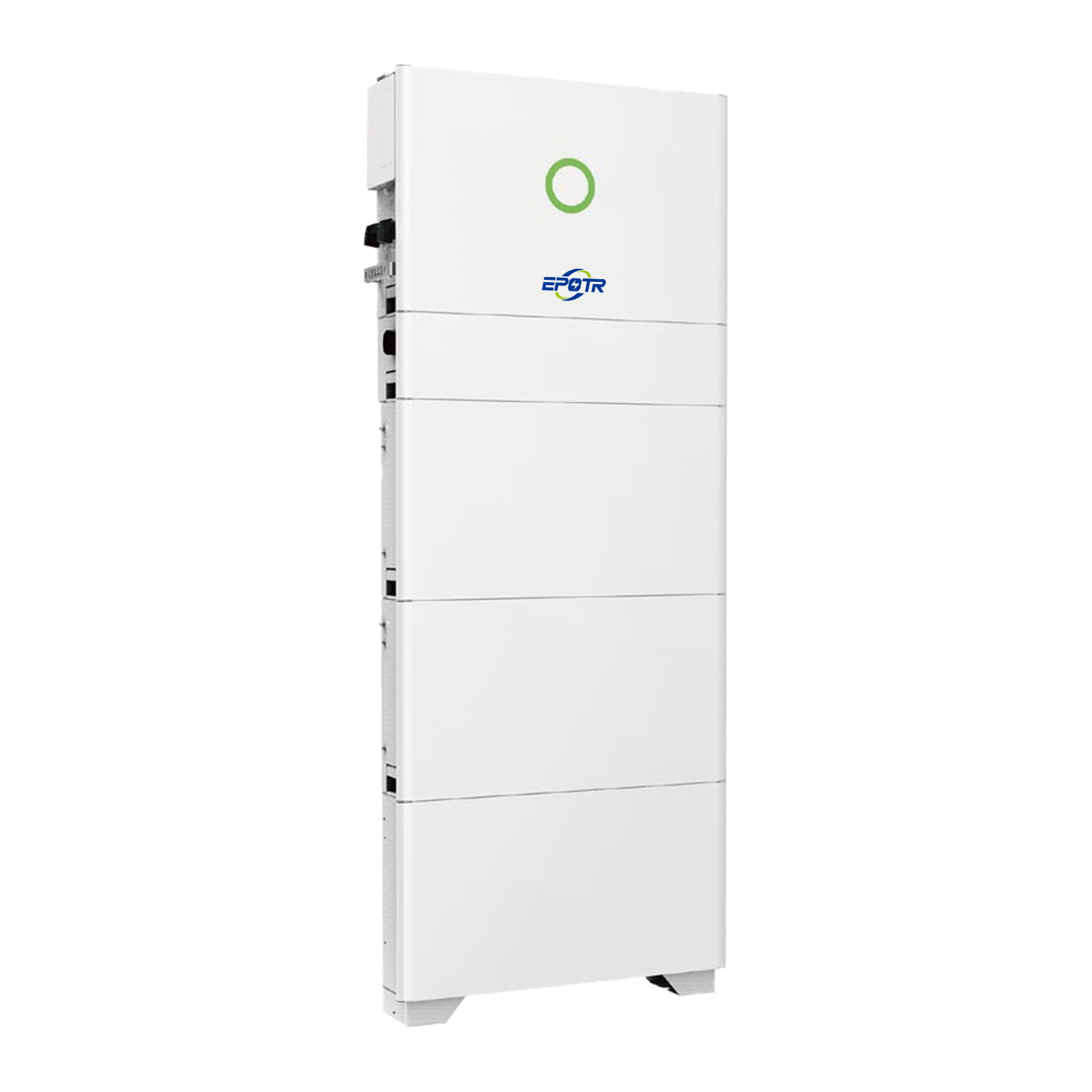

| Module | EP3-3K-S2-W/G-PX EP3-3.6K-S2-W/G-PX EP3-4K-S2-W/G-PX EP3-4.6K-S2-W/G-PX EP3-5K-S2-W/G-PX EP3-6K-S2-W/G-PX | ||||||
| DC Input Max.PVArray Power [Wp]@STC |
6000 7200 8000 9200 10000 12000 | ||||||
| Max.DC Voltage [V] | 600 | ||||||
| MPPTVoltage Range [V] | 90~550 | ||||||
| Rated DCVoltage [V] | 360 | ||||||
| Start Voltage [V] | 100 | ||||||
| Max.DC Input Current [A] | 20/20 | ||||||
| Max.DC Short Circuit Current [A] | 25/25 | ||||||
| No.of MPPT | 2 | ||||||
| AC Output/nput [On-grid] | |||||||
| Rated AC Power [W] | 3000 | 3600 | 4000 | 4600 | 5000*** | 6000* | |
| Max.Apparent Power[VA] | 3300 | 3600 | 4400 | 4600 | 5500*** 6000* | ||
| Rated Output Current [A]@230Vac | 13.0 | 15.7 | 17.4 | 20.0 | 21.7 26.1** | ||
| Max.Output Current [A] | 14.3 | 15.7 | 19.1 | 20.0 | 23.9*** 27.3** | ||
| Max.Input Current [A]@230Vac | 54.5 | ||||||
| Rated ACVoltage/Range [V] | L+N+PE,220,230,240/180～280 | ||||||
| Rated Output Frequency/Range [Hz] | 50,60/45～55,55～65 | ||||||
| Power Factor [cos φ] | 0.8 leading～0.8 lagging | ||||||
| Total Harmonic Distortion [THDi] | <3% | ||||||
| Battery Parameters | |||||||
| Battery Type | LiFePO4 | ||||||
| Battery Voltage Range[V] | 380～500 | ||||||
| Max.Charging/Discharging Current [A] | 15.8/9.2 | 15.8/10 | 15.8/12.4 | 15.8/12.9 | 15.8/15.2*** 15.8/16.8** | ||
| Scalability | BU3-5.0-TV2-PRO(up to 8 battery modules) | ||||||
| AC Output [Back-up] | |||||||
| Rated Output Power [W] | 3000 | 3680 | 4000 | 4600 | 5000*** 6000 | ||
| Peak Output Apparent Power [VA] Rated Output Frequency/Range [Hz] |
3600,60s | 4416,60s | 4800,60s 5520,60s | 6000,60s 7200,60s | |||
| Rated AC Voltage/Range [V] | L+N+PE,220,230,240/180～280 | ||||||
| Rated Output Frequency/Range [Hz] | 50,60/45～55,55～65 | ||||||
| Output THDv(@Linear Load) | <3% | ||||||
| Efficiency | |||||||
| Max.Efficiency | 97.6% | ||||||
| Euro Efficiency | 97.2% | ||||||
| Protection | |||||||
| Battery Input Reverse Polarity Protection | Integrated | ||||||
| Over load Protection | Integrated | ||||||
| AC Short Circuit Current Protection | Integrated | ||||||
| AC Overcurrent Protection | Integrated | ||||||
| AC Overvoltage Protection | Integrated | ||||||
| DC Surge Protection | Type ll | ||||||
| AC Surge Protection | Type ll | ||||||
| Anti-islanding Protection | Integrated | ||||||
| AFCI Protection | Integrated | ||||||
| Interface PV Connection MC4/D4 |
|||||||
| AC Connection Plug-in connector | |||||||
| Battery Connection Quick connector | |||||||
| Display LED+APP | |||||||
| Communication Wi-Fi/Ethernet/4G(Optional) | |||||||
| General Parameters | |||||||
| Topology Non-isolated | |||||||
| Operating Temperature Range | -30℃~+50℃ | ||||||
| Cooling Method | Natural Convection | ||||||
| Relative Humidity Range | 0-100%Non-condensing | ||||||
| Max.Operating Altitude [m] | 3000 | ||||||
| Noise [dBA] | <35 | ||||||
| Ingress Protection | IP65 | ||||||
| Inverter Dimensions [H*W*D][mm] | 400*695*170 | ||||||
| Battery Dimensions [H*W*D][mm] | 420*695*170 | ||||||
| Inverter Weight [kg] | 27.5 | ||||||
| Battery Weight [kg] | 53.0 | ||||||
| Standard | EN 62109-1/2,EN61000-6-2/4,EN 50438,EN 50549,C10/11,IEC 62116,IEC61727,RD 1699,RD 413,UNE 206006,UNE 206007, NTS,CEI 0-16,CEI 0-21,AS4777.2,NBR 16149,NBR 16150 VDE-AR-N 4105,VDE 0126-1-1 |
||||||
| Charger Model CU2-7.4K-S-I | |||||||
| Output Voltage [VAC] | 230,±20% | ||||||
| Max.output Current [A] | 32 | ||||||
| Rated Output Power [kW] | 7 | ||||||
| Power Consumption(standby)[W] | 7 | ||||||
| Dimension [mm][H*W*D] Weight [kg] |
160*695*170 9 |
||||||
| Working Temperature | -30℃to+50℃ | ||||||
| Ambient Humidity | 5-95%non-condensing | ||||||
