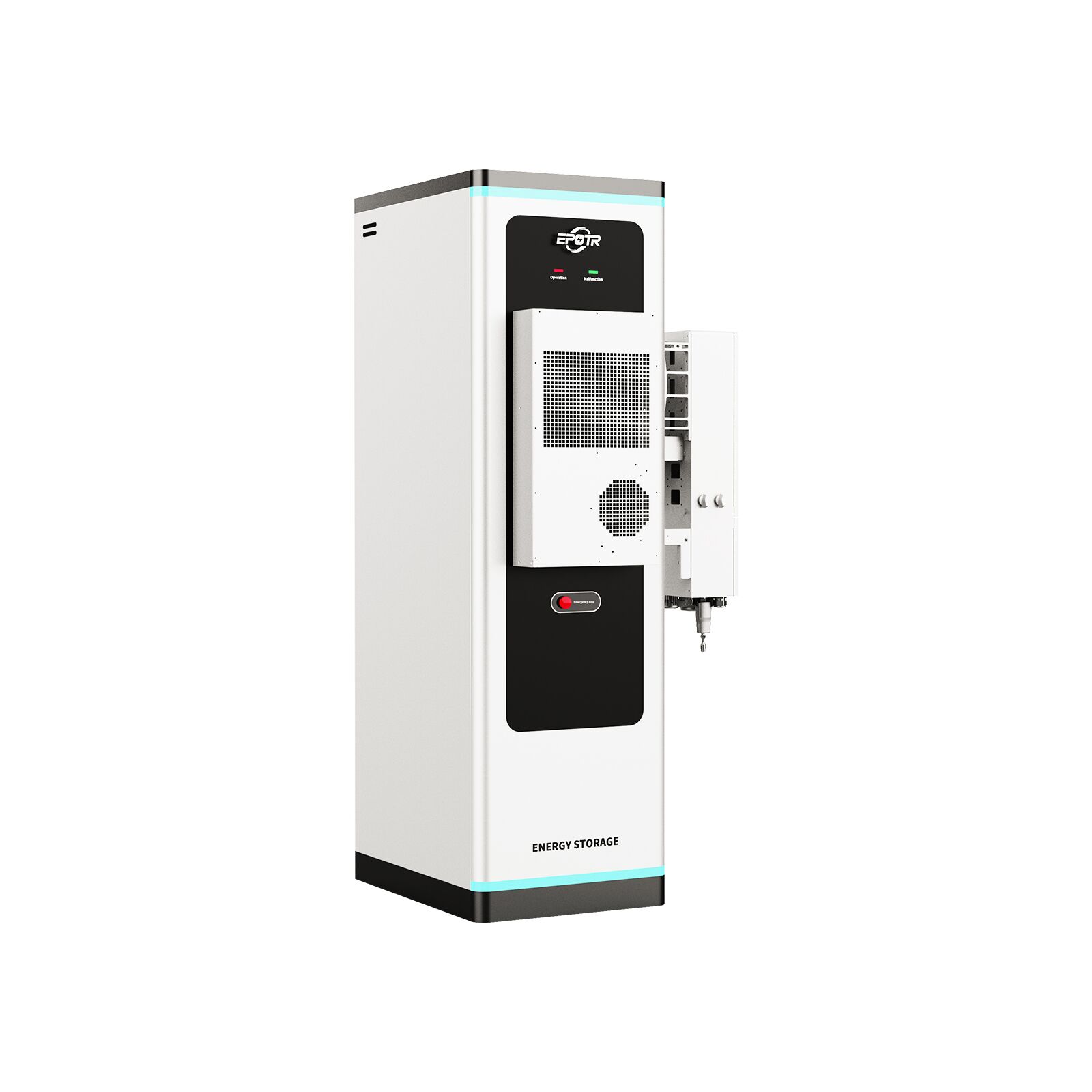

| Model | EP2-CB-100KH2-50K | ||
| Hybrid Inverter Data | |||
| Compatible Battery Data | |||
| Battery Type/Battery Voltage Range [V] | LiFePO4/180～800 | ||
| Max.Charging/Discharging | 150 | ||
| Hybrid Inverter AC Output Data【On-grid】 | |||
| Rated AC Power(KW)/Max.Apparent Power [kVA] | 50/55;(expandable to 12*50) | ||
| Rated AC Output Voltage(V) | 3+N+PE,380/400 | ||
| Rated AC Output Frequency(Hz) | 50/60 | ||
| Max.AC Current(A) | 72.5 | ||
| Max.AC Output Current to Utility Grid[A] | 79.8 | ||
| Rated Output Frequency/Range [Hz] | 50,60/45～55,55~65 | ||
| PF/THDi | 0i-1-0c /<3% | ||
| Peak Efficiency //Max.Battery to AC Efficiency | 98.0%//96% | ||
| Unbalanced capacity /Isolation Type | 100%/Transformerless | ||
| Hybrid Inverter AC Input Data【On-grid】 | |||
| Rated AC Voltage [V] | 3+N+PE,380/400/415 | ||
| Rated Input Frequency [Hz]/Max.Input Current [A] | 50Hz,60Hz /200A | ||
| Hybrid Inverter ACInput Data【Off-grid】 | |||
| Max.Apparent Power [VA] | 55000 | ||
| Peak Output Apparent Power [VA] | 75000,5s | ||
| Rated AC Voltage [V] | 3+N+PE,380/400 | ||
| Rated Output Frequency/Range[Hz] | 50,60/45～55,55~65 | ||
| Output THDv(@Linear Load) | <3% | ||
| Hybrid Inverter AC Input Data [Diesel Generator] | |||
| Max.Input Power [W] | 138000 | ||
| Max.Input Current [A]@230V | 200 | ||
| Rated Input Voltage[v] | 3+N+PE,380/400 | ||
| Rated Input Frequency /Range[Hz] | 50,60/45~55,55～65 | ||
| PV DC/DC Data | |||
| Max.PVArray Power [Wp]@STC | 100000 | ||
| Max.DC Voltage [V]/MPPT Voltage Range[V] | 1000/180～850 | ||
| Rated DC Voltage[V]/Start Voltage[V] | 600/200 | ||
| Max.DC Input Current [A] | 6*45 | ||
| Max.DC input current of a single string [A] | 22.5 | ||
| Max.DC Short Circuit Current [A] | 6*55 | ||
| Number of Strings per MPPT | 2 | ||
| Protection Data | |||
| PV String Current Monitoring,PV Insulation Resistance Detection | Integrated | ||
| Residual Current Monitoring,PV Reverse Polarity Protection | Integrated | ||
| AC Overcurrent Protection,AC Short Circuit Protection,AC Overvoltage Protection | Integrated | ||
| DC switch,Anti-islanding Protection,AFCl | Integrated | ||
| DC Surge Protection,AC Surge Protection | II | ||
| RSD | Optional | ||
| Hybrid Inverter General Data | |||
| Operating Temperature Range | -40°℃to+60°℃(45°℃to 60℃with derating) | ||
| Cooling Method | Smart Fan Cooling | ||
| Communication Type | Wi-Fi/Ethernet/CAN/RS485 | ||
| Ambient Humidity | 0-100%Non-condensing | ||
| Ingress Protection | IP66 | ||
| Dimensions [H*W*D][mm] | 630*900*290 | ||
| Weight [kg] | 89 | ||
| Warranty [Year] | 5/10 | ||
| Standard | VDE4105,IEC61727/62116,VDE0126,AS4777.2,CEI 0-21,EN50549-1,G98,G99,C10-11,UNE217002, | ||
| NBR16149/NBR16150,IEC62109-1/-2,NBT32004-2018,EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6 | |||
| Energy Storage Battery Cabinet Data | |||
| Electrical data | |||
| Battery Type/Cell Capacity(Ah) | Lithum Iron Phoshate(LiFePO4)/314 | ||
| Cell cycles life | 8000 cyles @70%SOH,,25℃/0.5P | ||
| Nominal Capacity(kWh) | 112.54KWh | ||
| Battery Pack Qty | 7 | ||
| DC Voltage Range(V) | 313.6~408.8 | ||
| DC Nominal Voltage (V) | 358.4 | ||
| Max.Charge/Discharge Current(A) | 150 | ||
| Efficiency | 95% | ||
| EMS Data | |||
| EMS | 10 inch LCD Touch Panel;Self-Consumption;Micro-grid control;Demand response;Remote Control;Time of use; | ||
| General Data | |||
| Dimension(W*D*H) | 720*1168*2350mm | ||
| Communication Type | CAN | ||
| Net Weight | <1200 Kg | ||
| Working Temperature Range(℃) | -20~60 | ||
| Protection Class | IP54 | ||
| Altitude | <3000 | ||
| Humidity | 0~95% | ||
| Fire Extinguishing | Aerogel | ||
| Air Conditioner | 2KW for cooling | ||
| Anti-Corrosion | C3(Optional upgrade to C5) | ||
| Authentication level | CE/UN38.3/MSDS | ||
