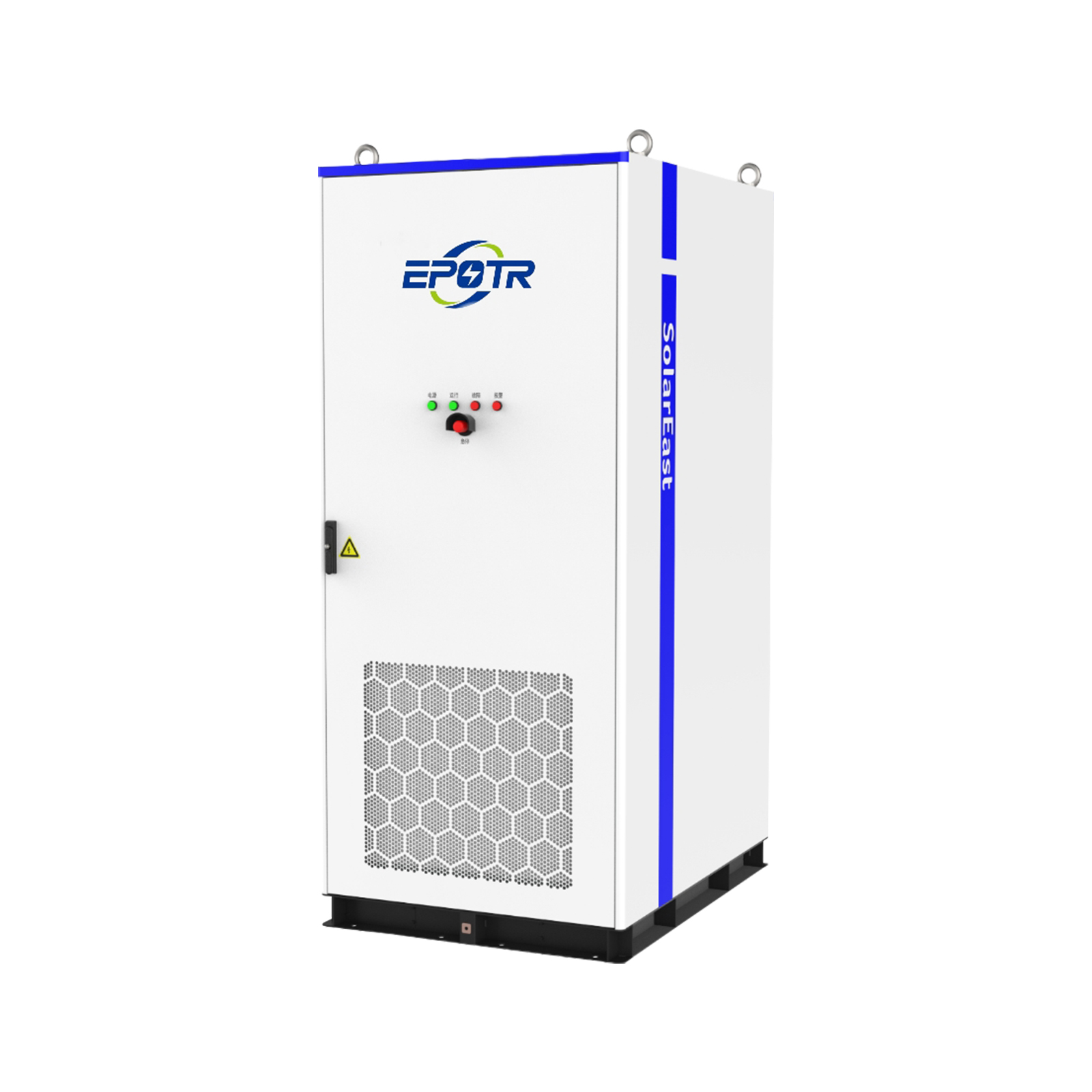

| Model | EP215L-100K |
| AC(on-grid) | |
| Rated AC power | 100kW |
| Max.output power | 110kW |
| Allowable grid voltage | 400V(-15%~10%) |
| Allowable grid frequency | 50/60Hz±5Hz |
| Max.THD of Current | <3%(Nominal Power) |
| DC Component | <5%(Nominal Power) |
| Power Factor Range | 501.0 leading～1.0 lagging |
| Wiring method | 3P4W+PE |
| AC(off-grid) | |
| Nominal voltage | 400 V |
| Max.THD of voltage | |
| <3%(Linear load) | |
| 100 % | |
| DC Side | |
| Battery cells | LFP 3.2V/280Ah |
| PACK configuration | 1P48S/43kWh |
| System configuration | 1P240S |
| System capacity | 215.04kWh |
| Voltage range | 648~864V |
| Max.EPS efficiency | 98% |
| System efficiency | >88% |
| C-rate | ≤0.5C |
| System Parameter | |
| Dimension | 1000*1350*2391mm(Incl.lifting lug) 1000*1350*2300mm(Excl.lifting lug) |
| Weight | 2400kg |
| Noise | <75dB @1m |
| IP Class | IP54 |
| Cooling | Air cooling |
| Ambient temperature | -20~50℃(>45℃ derating) |
| Humidity | ≤95% |
| Altitude | >2000m derating |
| Fire protection | Default:Flammable gas detector,Smoke detector,Heat detector, Alarm sounder,Aersol,Sprinkler,Optional:FK5112 |
| Communication | RS485/Ethernet |
| Communication protocol | IEC61850/MODBUS-RTU/MODBUS-TCP |
