Our C&I BESS solution optimizes commercial/industrial energy use with smart battery storage—enabling peak shaving, renewable integration, backup power, and cost reduction for cleaner, more efficient operations.

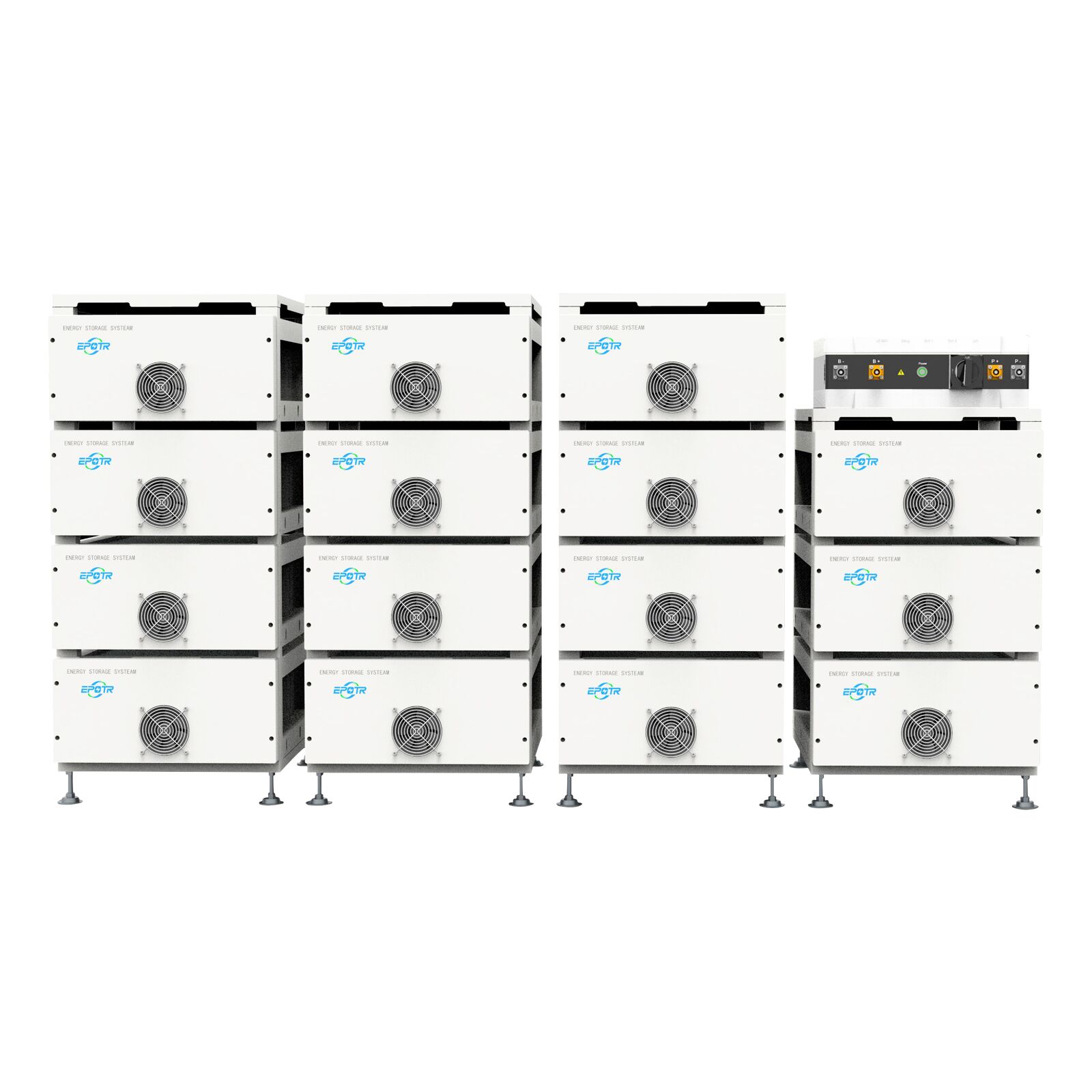

| ESS Model EP-ST-80KH-40K | ||||
| Main Parameters | ||||
| Battery Module Energy(kWh) | 16.08 | |||
| Battery Module Nominal Voltage(V) | 51.2 | |||
| Battery Module Capacity(Ah) | 314 | |||
| Module Weight Approximate(kg) | 135 | |||
| Battery Module Qty In Series(Optional) | 15 | |||
| Scalability | 5～15 | |||
| System Nominal Voltage(V) | 768 | |||
| System Energy(kWh) | 241 | |||
| System Usable Energy(kWh) | 216.9 | |||
| Charge/Discharge Current(A) | Recommend 150 | |||
| MAX 200 | ||||
| OTHER PARAMENTS | ||||
| Operating Temperature(℃) | discharge:-20～55 charge:0～55 | |||
| Storage Temperature(℃) | 0～35 | |||
| Thermal Management | Smart fan cooling | |||
| SOC/Fault Code | ||||
| Status Indicator | Yellow:Battery High Voltage Power On Red:Battery System Alarm | |||
| Communication Port | TCP/RS485/CAN | |||
| Communication With BMS | CAN | |||
| 5%～85% | ||||
| Altitude | ≤3000m | |||
| IP Rating of Enclosure | IP20 | |||
| Noise(dB) | TBD | |||
| System Dimension(W×H×D,mm) | 2150×1100×810 | |||
| System Weight Approximate(kg) | 1920 | |||
| Installation Location | Rack Mounted | |||
| Recommend Depth of Discharge | 0.9 | |||
| 25±2℃,0.5C/0.5C,EOL70%≥8000 | ||||
| Warranty Period | 5 years | |||
