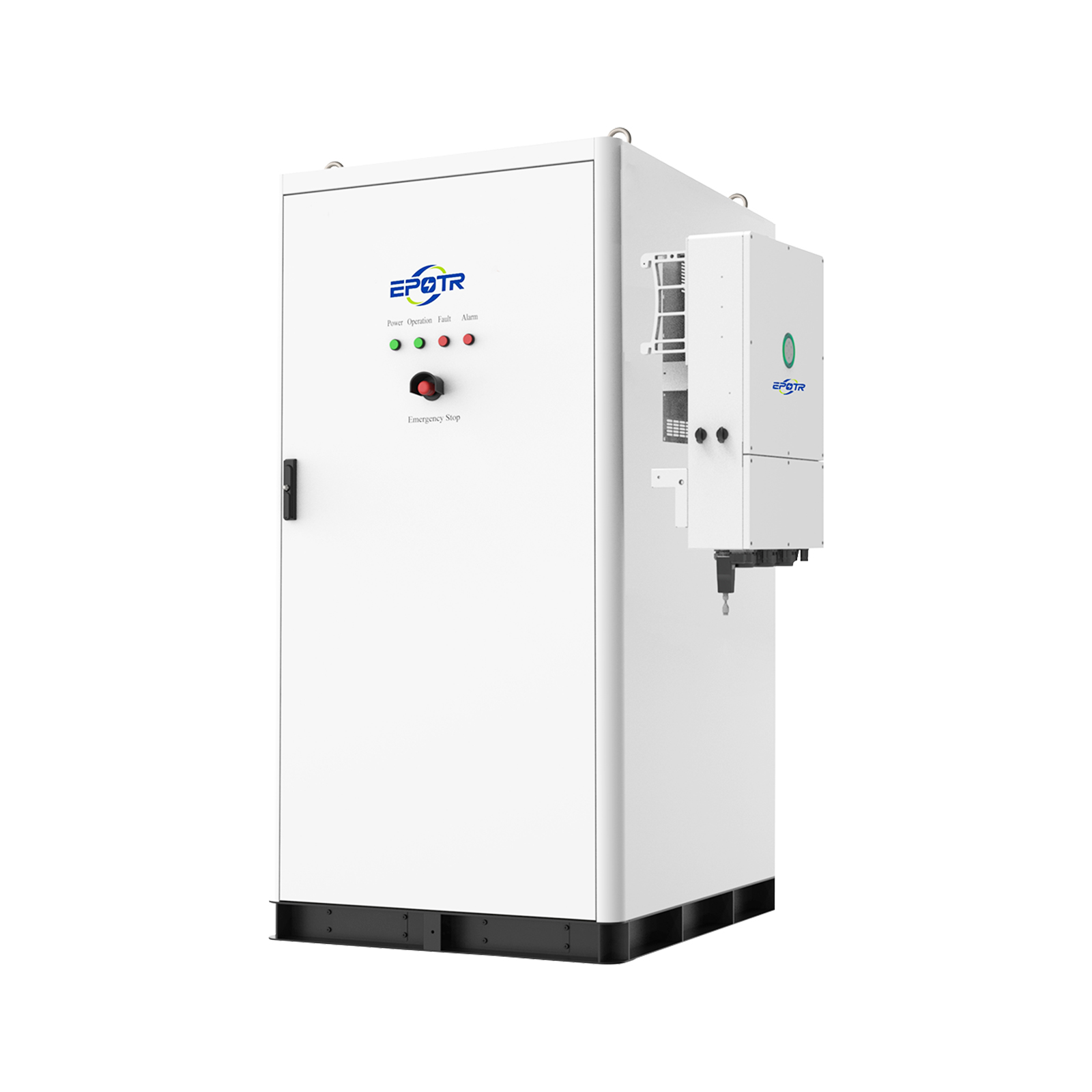

| MODEL | EP1-50K-T6-X-P | |
| DC Input | ||
| Max.PV Array Power [Wp]@STC | 100000 | |
| Max.DC Voltage[V] | 1000 | |
| MPPT Voltage Range [V] | 180～850 | |
| Rated DC Voltage[V] | 600 | |
| Start Voltage [V] | 200 | |
| Max.DC Input Current [A] | 6*45 | |
| Max.DC input current of a single string [A] | 22.5 | |
| Max.DC Short Circuit Current [A] | 6*55 | |
| Number of Strings per MPPT | 2 | |
| Battery Parameters | ||
| Battery Type | LiFePO4 | |
| Rated Energy [kWh] | 57.3-100.3 | |
| Battery Voltage Range [V] | 179.2-403.2 | |
| Max.Charging/Discharging | 140 | |
| AC Output [On-grid] | ||
| Rated AC Power [W] | 50000 | |
| Max.Apparent Power [VA] | 55000 | |
| Rated Output Current [A]@230Vac | 72.5 | |
| Max.AC Output Current to Utility Grid [A] | 79.8 | |
| Current Inrush[A] | 192 | |
| Max.AC Fault Current[A] | 182.6 | |
| Max.AC Over Current Protection[A] | 145 | |
| Rated AC Voltage [V] | 3+N+PE,380/400 | |
| Rated Output Frequency/Range [Hz] | 50,45-55 | |
| Power Factor [cosφ] | 0i-1-0c | |
| Total Harmonic Distortion [THDi] | <3% | |
| AC Input [On-grid] | ||
| Rated AC Voltage [V] | 3+N+PE,380/400 | |
| Rated Input Frequency [Hz] | 5,060 | |
| Max.Input Current [A] | 200 | |
| AC Input [Generator] | ||
| Max.Input Current [A]@230V | 200 | |
| Rated Input Voltage [v] | 3+N+PE,380/400 | |
| Rated Input Frequency/Range [Hz] | 50,45-55 | |
| AC Output [Back-up] | ||
| Max.Apparent Power [VA] | 55000 | |
| Peak Output Apparent Power [VA] | 75000,5s | |
| Rated AC Voltage [V] | 3+N+PE,380/400 | |
| Rated Output Frequency/Range [Hz] | 50,45-55 | |
| Output THDv(@Linear Load) | <3% | |
| Efficiency | ||
| Max.Efficiency | ≥98.0% | |
| Euro Efficiency | 97.3% | |
| Max.Battery to AC Efficiency | 96.0% | |
| Protection | ||
| PV String Current Monitoring | Integrated | |
| PV Insulation Resistance Detection | ntegrated | |
| Residual Current Monitoring | Integrated | |
| PV Reverse Polarity Protection | Integrated | |
| Anti-islanding Protection | AFD | |
| AC Overcurrent Protection | Integrated | |
| AC Short Circuit Protection | Integrated | |
| AC Overvoltage Protection | Integrated | |
| DC switch | Integrated | |
| DC Surge Protection | IⅡ | |
| AC Surge Protection | Ⅱ | |
| AFCl | Integrated | |
| RSD | Optional | |
| General Parameters | ||
| Communication | Wi-Fi/Ethernet/RS485 | |
| Topology | Non-isolated | |
| Operating Temperature Range | -30℃to+50℃(45℃to 50℃ with derating) | |
| Cooling Method | Air Conditioner | |
| Ambient Humidity | 0-100%Non-condensing | |
| Altitude [m] | 2000 | |
| Ingress Protection | IP55,IP66(Inverter) | |
| Dimensions [H*W*D][mm] | 1980*988*1065 | |
| Weight [kg] | 1035(57.3kWh)/1145(71.6kWh)/1255(85.9kWh)/1365(100.3kWh) | |
| Warranty [Year] | 5/10 | |
| Standard | VDE4105,IEC61727/62116,VDE0126,AS4777.2,CEI 0-21,EN50549-1,G98,G99,C10-11,UNE217002, | |
| NBR16149/NBR16150 | ,IEC62109-1/-2,NBT32004-2018,EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6 | |
| MODEL | EP1-50K-T6-P |
| DC Input | |
| Max.PVArray Power [Wpl@STC | 100000 |
| Max.DC Voltage [V] | 1000 |
| MPPT Voltage Range [V] | 180～850 |
| Rated DC Voltage[V. | 600 |
| Start Voltage [V] | 200 |
| Max.DC Input Current [A] | 6*45 |
| Max.DC Short Circuit Current [A] | 6*55 |
| Number of Strings per MPPT | 2 |
| Battery Parameters | |
| Battery Type | LiFePO4 |
| Battery Voltage Range[V] | 180～800 |
| Max Charging/Discharging Current [A] | 150 |
| AC Output [On-grid] | |
| Rated AC Power [W] | 50000 |
| Max.Apparent Power[VA] | 55000 |
| Rated Output Current[A]@230V | 72.5 |
| Max Output Current [A]@220V/230V | 79.8 |
| Rated AC Voltage/Range [V] | 3+N+PE,380/400 |
| Rated Output Frequency/Range [Hz] | 50,60/45～55,55～65 |
| Power Factor [cosφ] | 0i-1-0c |
| Total -Harmonic Distortion [THDi] | <3% |
| AC input [On-grid] | |
| Rated AC Voltage [V] | 3+N+PE,380/400/415 |
| Rated Outpit Frequency [Hz] | 5,060 |
| Max.Input Current [A] | 200 |
| AC Dutput [Back-up] | |
| MaxOutput Power [VA] | 55000 |
| Peak Output Apparent Power [VA] | 75000,5s |
| Rated AC Voltage [V] | 3+N+PE,380/400 |
| Rated Output Frequency/Range [Hz] | 50,60/45～55,55～65 |
| Output THDv(@Liner Load) | <3% |
| AC Input [Generator] | |
| Max.Input Power [W] | 138000 |
| Max.Input Current [A]@220V/230V | 200 |
| Rated Input Voltage [V] | 3+N+PE,380/400 |
| Rated Input Frequency/Range [Hz] | 50,60/45～55,55～65 |
| Efficiency | |
| Max.Efficiency | ≥98.0% |
| Max.Battery to AC Efficiency | 96.0% |
| Protection | |
| PV Reverse Polarity Protection | Integrated |
| Anti-islanding Protection | Integrated |
| AC Overcurrent Protection | Integrated |
| AC Short Circuit Protection | Integrated |
| AC Overvoltage Protection | Integrated |
| DC switch | Integrated |
| DC Surge Protection | Ⅱ |
| AC Surge Protection | I |
| AFCI | Integrated |
| RSD | Optional |
| General Parameters | |
| Communicat:ion | Ni-Fi/Ethernet/CAN/RS485 |
| Topology | Transformerless |
| Operating Temperature Range | -40℃to+60℃(45℃to 60℃with derating) |
| Cooling Method | Smart Fan Cooling |
| Ambient Humidity | 0-100%Non-condensing |
| Altitude[m] | ≤3000 |
| Ingress Protection | IP66 |
| Dimensions [H*W*D][mm] | 630*900*290 |
| Neight [kg] | 89 |
| Warranty [Year] | 5/10 |
| MODEL | CB2=57.3-HV5 | CB2-71.6=HV5 | CB2-85.9=HV5 | CB2-100.3-HV5: |
| Rated Energy [kWh] | 57.3 | 71.6 | 85.9 | 100.3 |
| Usable Energy [kWh] | 51.5 | 64.4 | 77.3 | 90.2 |
| Rated Capacity [Ah] | 280 | 280 | 280 | 280 |
| No.of Modules | 4 | 5 | 6 | 7 |
| Nominal Voltage [V] | 204.8 | 256 | 307.2 | 358.4 |
| Voltage Range [V] | 179.2~230.4 | 224~288 | 268.8~345.6 | 313.6~403.2 |
| Charge/Discharge Current [A] | 140 | 140 | 140 | 140 |
| Rated Power [kW] | 28.6 | 35.6 | 42.9 | 50.1 |
| Neight [kg] | 960 | 1060 | 1160 | 1260 |
| Dimension [H*W”D][mm] | 1980*988*1065 | |||
| Communication | CAN | |||
| Orerating Temperature Range [℃] | -30~50 | |||
| Cooling Method | Air Conditioner | |||
| Relative Humidity | 5~:5%(No Condensing) | |||
| Altitude[m] | 2000 | |||
| Ingres Protection | IP55 | |||
| Mounting | Ground-Mounted | |||
| Control Module | CBC2-HV5 | |||
| Weight [kg] | 28 | |||
| Dimension [H*W*D][mm] | 225*483*610 | |||
| Battery Module | CBU2-14.33-HV5 | |||
| Rated Energy [kWh] | 14.33 | |||
| Neight [kg] | 115 | |||
| Dimension [H*W*D][mm] | 231*523*805 | |||
| Applicable Standard | IEC62619-2017,UN38.3,IEC61000-6-2/4,EC62477 | |||
